Mooring repositioning

Explore how coordinated changes in three mooring lengths move a Spar toward a requested position.

How can line lengths reposition a platform?

Illustration of a moored Spar moving from its original position toward a target
Mechanism illustration · The model and its results are shown below.

What you can model

A feedforward plan selects three line lengths for a target surge position. The plan-view diagram connects the line arrangement to the platform location and applied load. After an initial hold, rate-limited commands shorten one line and lengthen the other two, allowing the platform to move under the resulting mooring forces.

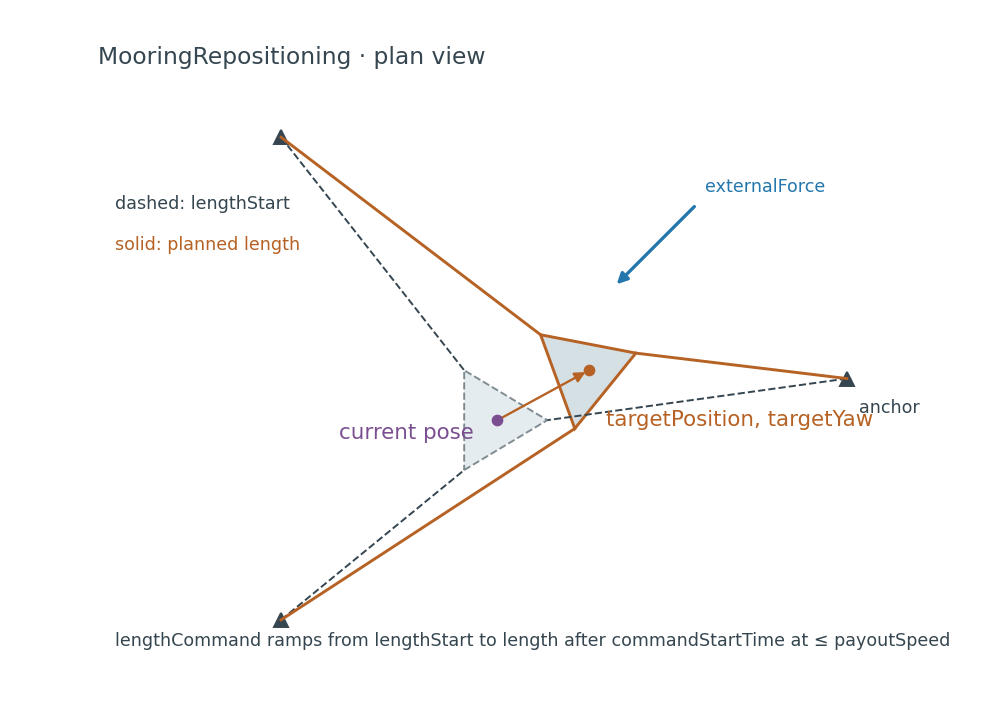

Plan view of mooring lengths, platform position and applied load.
Plan view of mooring lengths, platform position and applied load.

What you can explore

Follow the length commands, then compare target and actual surge through the repositioning maneuver. The position-error trace shows how the moving system approaches the planned endpoint. Together, these plots connect coordinated line changes to the motion achieved by the platform.

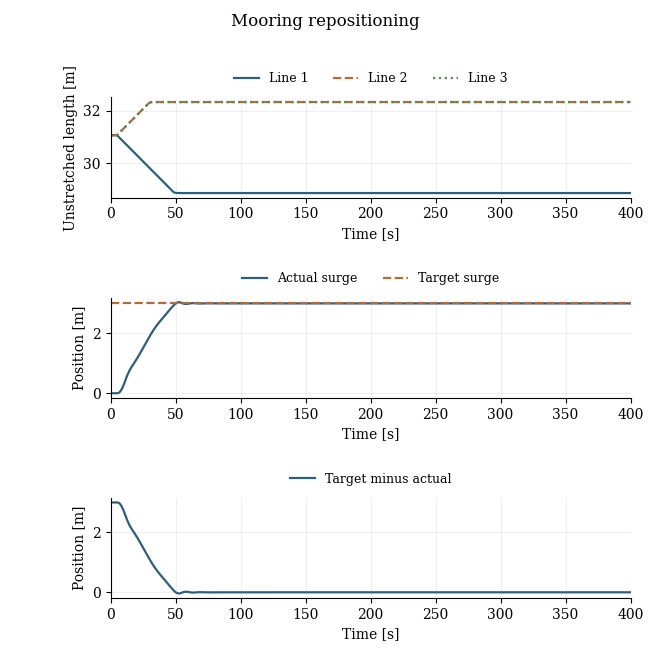

Line commands, target and actual surge, and remaining position error.
Line commands, target and actual surge, and remaining position error.
